Pillow type packaging machine for food packaging
- Model
- DW-300B
Item specifics
- Brand
- DADI
- Place of Origin
- Guangdong, China
- warranty period
- 1 year
- Automation
- Full Automatic
- Function
- Filling, metering, sealing, packaging assistance, coding, spraying, labeling
Review
Description
Parameter
Packing speed |
50-1200 pcs/min |
||
Scope of adaptation |
Suitable for automatic finishing and packaging of block materials, such as chocolate, oatmeal sugar and cake Shaqima |
||
Film width |
MAX.320mm |
||
Packaging size |
15-200mm in length, 15-60mm in width and 5-30mm in height |
||
Diameter of roll film | MAX.320mm | ||
Power | 380V 50Hz 9.5 kW | ||
Weight of the whole machine | 3500kg | ||

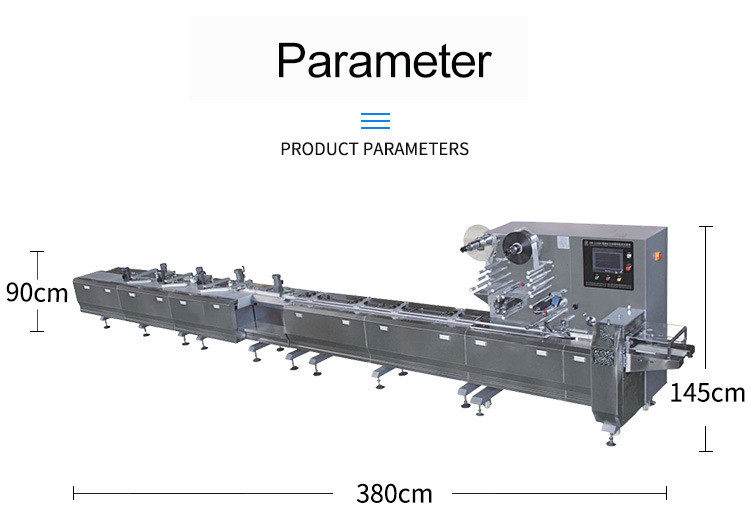

Outline Dimensions | Length 3800x Width 900x Height 1450mm | ||
Comments | The air-filling device and code device can be added | ||
Dimention | 380*90*145cm | ||
Product details
Advantage1：
All adopt high quality spare parts.
1，Nine-servo conveyor belt, high-speed material sorting products, fast arrangement, convenient packaging
2，Automatic film splicing with linkage roll film，Double film frame device, automatic film connection, high-speed production without stopping
3，Three temperature control, stable and efficient，With three temperature control meters, the temperature does not interfere with each other, and the sealing effect is more beautiful
Advantage2：

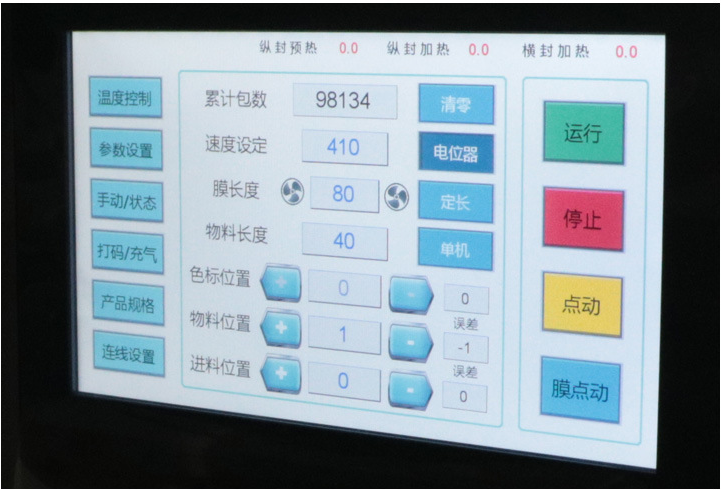

1，Intelligent man-machine system
Touch screen system, easy to understand parameter setting and function switching
2，Panasonic electronic sensor
High-speed control products to achieve zero empty packages
3，French Schneider inverter
17 frequency converters, better transmission, stable, durable and smoother
Application
This packaging machine is mainly used for food packaging in the shape of bars, such as oatmeal, chocolate, cakes, bread, Sachima, pet food.
