Model
DCL

Item specifics

Weight checking range
0.1-10KG
Weight checking accuracy
about 1 g
Resolution
0.5g or 1 g

Review

Description

Parameter
DCM series checkweigher
Product model
DCL6040L10
DCM8040L15
DCM10040L20
Resolution
1g
1g
1g
Weight checking range
0.05-10kg
0.05-15kg
0.05-20kg
Weight checking ac
curacy
±3-5g
±5-10g
±8-15g
Belt speed
5-80m/min
Standardtechnical
parameters
Power supply: standard single-phase AC200-240V, 50/60HZ, 0.4KW, optional three-phase AC380V, 50/60HZ,
0.4KW
Air Source: Dry 0.5-0.8 MPa (5-8 bar)
Temperature: Use temperature: 0 40 Storage temperature: - 20 60.
Humidity: 10-90% RH, no condensation
Protection Level: IP30, IP54, IP65 are optional
Noise: <75db
Machine weight: 60kg
Working Height: 700± 50mm (confirmed when ordering other heights)
This is a title

It is mainly suitable for testing whether the weight of a single heavy product is qualified. It is widely used in electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industrial and agricultural by-products and other industries. Our checkweigher can also be based on the different needs of customers Custom made
This is a title
Automatic classification of products with uneven weight
The checkweighing can be used to automatically weigh each chicken wing, and the weight signal is sent to the PLC. The PLC drives the corresponding push plate according to the set range to send the chicken wings to the corresponding box, thereby completing the purpose of automatic classification.
Recheck the weight of the product

Final inspection of product weight In the final stage of product production, the weight of the product is re-inspected, and unqualified products are eliminated to ensure that the weight of the products delivered meets the requirements.

Checkweighers are suitable for use in many places

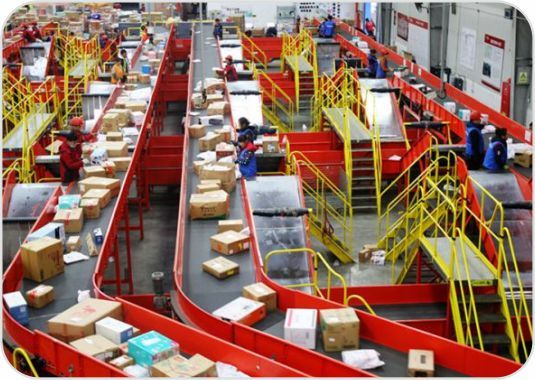

Checkweighers are suitable for use in many places, such as missing parts detection, missing package detection, missing bottle detection, short tank detection, short bag detection, lubricating oil lack barrel detection, logistics package detection, electrical product missing parts detection,
