Model
DCW series

Item specifics

Weight checking accuracy
Weight checking accuracy
Material
Weighing Sensor: Aluminum and stainless steel optional Roller: Aluminum Structure: stainless steel 304 Conveyor Belt: White, Food Grade, Polyurethane Thermoplastic (TPU)

Product review

Description

Parameter

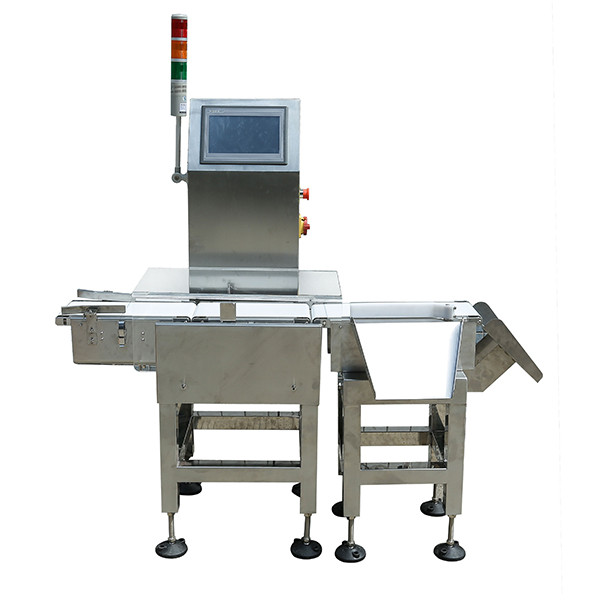

DCW series High precision belt checkweigher
Product model
DCW3012L02
DCW3512L05
DCW4012L1
Display scale
0.02g
0.05g
0.1g
Weight checking range
1-200g
1- 500g
2-1000g
Weight checking accuracy
± 0.1-0.3g
± 0.15-0.5g
± 0.2-0.6g
Size of weighing section
L 300mm*W 120mm
L:350mm*W 120mm
L 400mm*W 120mm
Suitable product size
L≤ 200mm;W≤ 120mm
L≤ 230mm;W≤ 120mm
L≤ 280mm;W≤ 120mm
Weighing Control System
DADI On-line weighing control system V1.1.5
Belt speed
5-90m/min
Sorting section
Standard 2 sections,optional 3 sections
Eliminating device
Air blowing, push rod, baffle, top and bottom turning plate are optional
Product details
Advantage:
1. The automatic checkweigher can control costs and obtain greater profits.
2. To ensure a high pass rate to the greatest extent, win the trust of consumers.
3. Automatic check weighing, saving manpower.
4. Reduce waste and increase output.
5. Automatic statistics.
6. Reduce the false rejection rate and avoid rework.
7. Meet the strict requirements of customers.
Application
Aquatic product classification

All kinds of seafood products, fish, shrimp, crabs, sea cucumbers, etc., classify products by weight.

Industrial product weight classification

Weight classification of electronic products, synthetic diamonds, auto parts and other products

Food processing (poultry, meat) classification

Chicken legs, chicken wings, chicken feet, duck legs, duck wings, offal products, etc. are divided into different weight ranges
