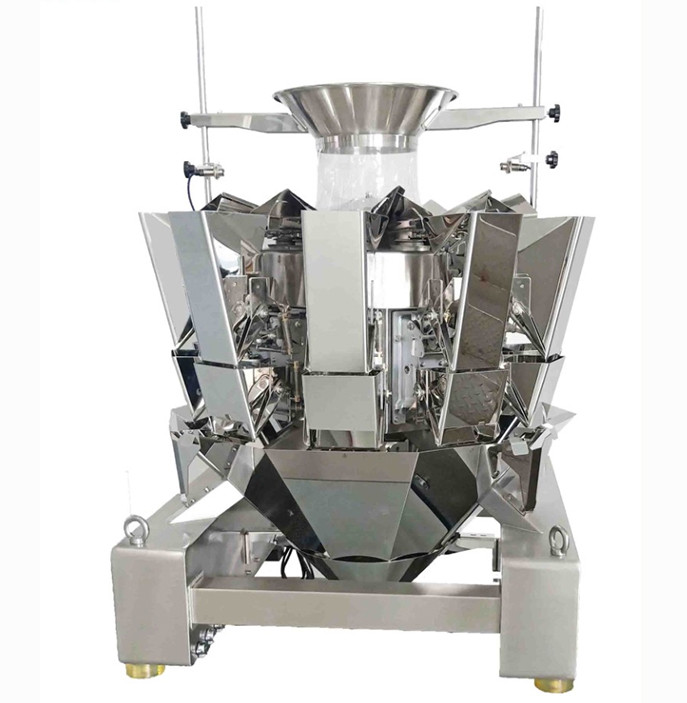

DCT series multihead weigher with hight quality
DCT series multihead weigher with hight quality
DCT series multihead weigher with hight quality
DCT series multihead weigher with hight quality

DCT series multihead weigher with hight quality

Model
DCT series

Item specifics

Number of multihead scales
8
Single weighing range
10-2000g
Maximum speed
120bag/min

Review

Description

Parameter
DCT series multihead weigher

Weighing accuracy

The average accuracy is about ≥0.3g～1g (the actual weighing accuracy depends on the weighing speed and material conditions)

Weighing speed

The average accuracy is about ≥0.3g～1g (the actual weighing accuracy depends on the weighing speed and material conditions)

Weighing speed

About 100 times/minute (theoretical maximum value) [The actual weighing speed is determined by the material status, target weighing weight, feeding situation, and packaging speed]

Single bucket range
10-2000g

Single bucket capacity

1.8L

One-time weighing capacity

The maximum is 2.8 liters. If the weight and capacity of the product exceed the range of one weighing (1000g), it needs to be weighed twice or more.

Weight sensor

Dual-arm strain load sensor

Display screen

7 inch Chinese display

Overall size (mm)

1150×1150×1115

Total Weight

about 200KG

Preset recipe function

10 kinds; equipped with automatic reset function,Linked with packaging machine

Protection level

IP65
Product details
Advantage:
1. During rapid weighing, the vibrator can automatically adjust the amount of vibration according to different target weight values, so that the feeding is more uniform and the combination rate is higher.
2. Using high-precision digital load cell and AD module for accurate measurement.
3. The changeable signal CAN port and error self-diagnosis function greatly improve the troubleshooting time and efficiency.
4. According to the characteristics of the object to be weighed, the opening and closing speed and opening angle of the hopper door can be finely adjusted to prevent material jam.
5. When combined weighing, you can choose to set multiple blanking and sequential blanking to avoid bulky materials from blocking the blanking opening.
6. The aggregate processing system with the functions of "automatic sorting" and "one for two" can directly eliminate unqualified products and directly process the unloading signals issued by 2 packaging machines.
7. All parts in contact with materials are made of stainless steel, which is clean and hygienic. The fully sealed and waterproof design prevents the intrusion of foreign objects and is easy to clean.
8. Two different materials can be weighed at the same time, and two different parameters can be set at the same time.
9. Set different permissions according to different operators to facilitate management.
10. The operating system can be used in Chinese/English/Western languages ​​according to customer requirements.
