DCL series checkweigher with middle weigher range
DCL series checkweigher with middle weigher range
DCL series checkweigher with middle weigher range
DCL series checkweigher with middle weigher range
Model
DCL

Item specifics

Weight checking range
0.1-10KG
Weight checking accuracy
about1g
Resolution
0.5g or 1 g

Product review

Description

Parameter
DCM series checkweigher
Product model
DCL6040L10
DCM8040L15
DCM10040L20
Resolution
1g
1g
1g
Weight checking range
0.05-10kg
0.05-15kg
0.05-20kg
Weight checking ac
curacy
±3-5g
±5-10g
±8-15g
Belt speed
5-80m/min
Standardtechnical
parameters
Power supply: standard single-phase AC200-240V, 50/60HZ, 0.4KW, optional three-phase AC380V, 50/60HZ,
0.4KW
Air Source: Dry 0.5-0.8 MPa (5-8 bar)
Temperature: Use temperature: 0 40 Storage temperature: - 20 60.
Humidity: 10-90% RH, no condensation
Protection Level: IP30, IP54, IP65 are optional
Noise: <75db
Machine weight: 60kg

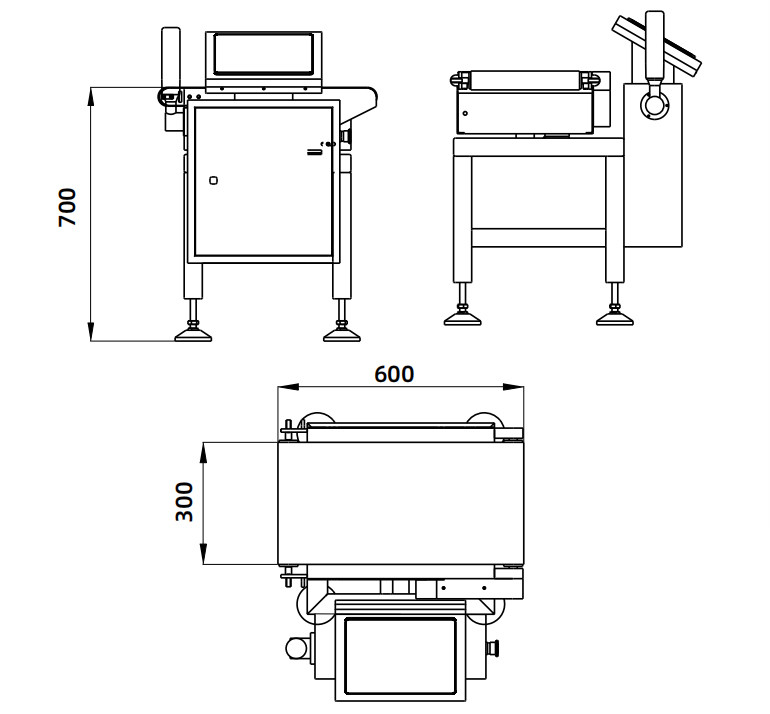

Working Height: 700± 50mm (confirmed when ordering other heights)
This is a title

It is mainly suitable for testing whether the weight of a single heavy product is qualified. It is widely used in electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industrial and agricultural by-products and other industries. Our checkweigher can also be based on the different needs of customers Custom made
