Sorting scale specifications

Share

Issue Time: Jun 28,2020

Summary

Let me introduce to you this sorting scale of our company. It mainly talks about the specifications of the sorting scale. I hope you can learn more about the parameters of the checkweigher through this article.

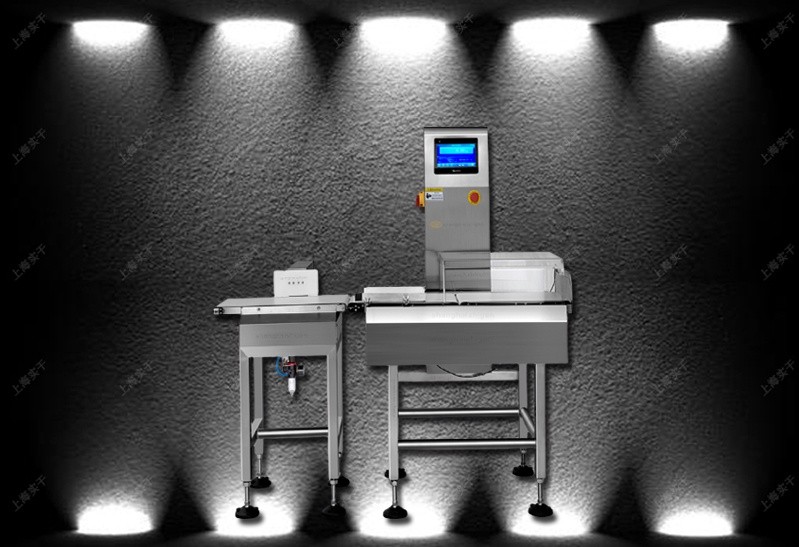

Sorting scale specifications:

Weighing range: 10-1000g

Detection accuracy: ±0.5g (The detection accuracy is affected by product weight, product size, transportation method, working environment, etc.)

Maximum inspection speed: 120 pieces/min

Conveyor belt width: 200mm

Conveyor length at the entrance: 350mm

Length of weighing table: 450mm

Conveyor length of reject section: 350mm

Rejection system: single lever rejection

Product conveying direction: the operator faces the touch screen from right to left

Air source: 0.4-0.8Mpa; 4L/min.

Conveyor height: 750mm+/-50mm

Working environment: temperature 0°C-40°C

Power supply: AC220V; 50HZ; 1P; 10A

Housing material: 304 stainless steel

Our company specializes in producing and selling sorting scales for many years and has accumulated rich technical experience. Now our sorting scales have been sold all over the country. We can also customize sorting scales according to the different requirements of customers. Friends in need can contact us directly. Thank you for your great support!
