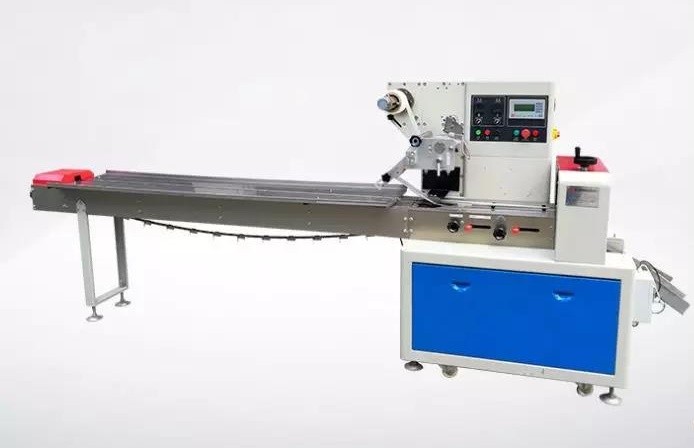

Automatic pillow packaging machine
Main performance and structural features: 1. Double inverter control, bag length is set and cut immediately, no need to adjust the empty running, one step in place, saving time and film.
2. Man-machine interface, convenient and quick parameter setting.
3. The fault self-diagnosis function, the fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking, digital input of the sealing and cutting position, so that the sealing and cutting position is more accurate.
5. Independent PID control of temperature, better suitable for various packaging materials.
6. Positioned stop function, no sticking to the knife, no wasting of film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
1. Coding machine
2. Straight grain middle sealing wheel
3. Reticulated end sealing mold
4. Large touch screen automatic pillow packaging machine Dried persimmon pillow packaging machine Cake packaging machine Biscuit pillow packaging machine
The automatic pillow packaging machine is operated by a variable frequency stepless speed regulation motor, and the gear chain continuously variable transmission is driven by a triangle belt to rotate the gearbox through the speed regulation of the variable speed chain to obtain different operating speeds and then transmitted to The planetary differential mechanism makes the paper film conveying length adjustment, and the output shaft of the gearbox drives the paper film pressure roller to rotate and convey the paper film through the chain drive. The paper film output length can be set manually on the gear chain governor. And during the packaging process, it is monitored by photoelectric tracking color code. At the same time, the gearbox is also driven by multiple sets of chains to realize the packaging of objects. Movement of conveyor belt, paper pulling wheel, pressing wheel, horizontal sealing knife and finished product conveyor belt.
In the packaging production of the pillow packaging machine, due to the error between the positioning color marks printed on the packaging material, the stretching of the packaging material and the influence of mechanical transmission and other factors, the predetermined sealing and cutting position on the packaging material may deviate from the correct position. And produce errors. In order to eliminate errors and achieve the purpose of correct sealing and cutting, packaging design must consider the problem of automatic positioning. Most of the solutions to this problem in the market are based on the positioning of packaging materials to complete continuous photoelectric automatic positioning, which is prone to deviations. The servo and cursor pairing method is more accurate, and the continuous photoelectric positioning system can be used for error compensation in advance and retreat, braking, and synchronization of the two transmission systems! Generally, it is controlled by original single-servo or double-servo three-servo motor. Compared with other products controlled by similar frequency conversion motors or inverters at home and abroad, it is more intelligent, with higher packaging accuracy, wider adjustable range, more precise control, and scrap Lower rate and better stability. Due to the fully open box structure, the transmission structure is clear at a glance, and the maintenance is more convenient; the whole machine has a compact structure, stable performance and simple operation. Double frequency conversion control, bag length is set and cut immediately, no need to adjust the empty running, one step in place, saving time and film. Imported electrical appliances, touch-type man-machine PLC interface, convenient parameter setting and fault self-diagnosis function, fault display is clear at a glance. High-sensitivity photoelectric eye color mark tracking makes the sealing and cutting position more accurate. Independent PID control of temperature, better suitable for coating of various materials. Positioned stop function, no sticking to the knife, no waste of film. The rotating system is simple, the work is more reliable, and the maintenance is more convenient. All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
